Voice call Auto Dialler
IVR System

Make Your Own IVR System Connect Multiple Agents And Dialled 500 to 800 calls In A Days So Just Connect Us And See Results ..."

the R2media Voice Terminal Supplier connects your business with R2media world with its compact and smart R2media Voice Terminal RM520 series which assures your cost cutting voice communication need and offers next generation features to the basic level GSM FCT Terminal. AIPL, the GSM Gateway Device Manufacturer offers plethora of features in GSM Terminal such as GSM call recording, GSM Fixed Wireless Terminal, Voice Broadcasting, Auto Dialer, Auto IVR, Click to Call and many others as described below.. R2media RM520 is a R2media Voice Terminal which has provision to establish connection with GSM Sim with two parallel FXS Ports, FXS Port can be interfaced with PBX, telephone instrument and dial pad for making and receiving calls via GSM network during office hours from their desk This innovative designed R2media Voice Terminal RM520 finds its applications in Call center, corporate offices, banks, share brokers Manufacturing units, hotels, residences and other such establishments.

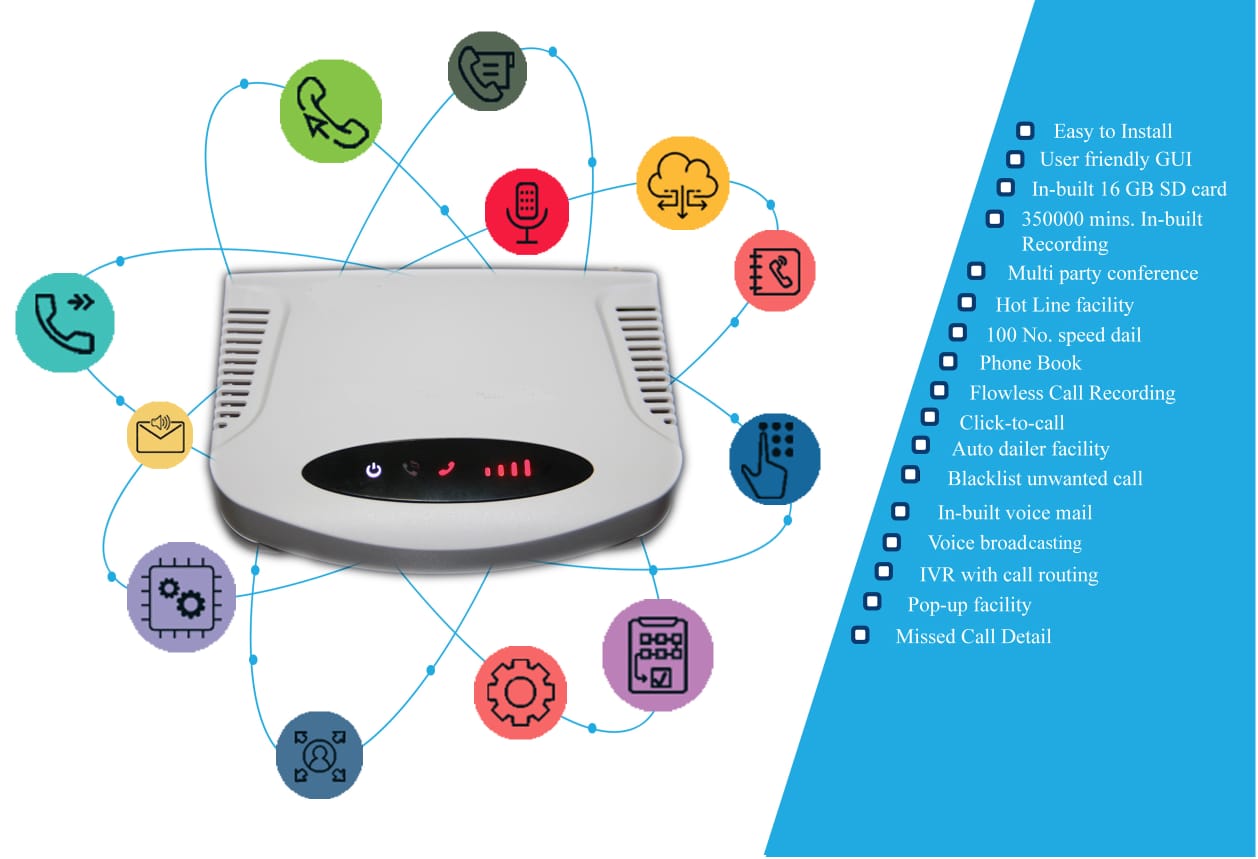

Silent Features

Easy to install

R2media Voice Terminal RM520 installation process is quick and trouble free

User friendly GUI-

R2media Voice Terminal RM520 has integration with window base GUI with user friendly features

High gain antenna

R2media Voice Terminal RM520 provides 3 mtr. wire antenna for high gain

Hot dialing

Automatically connect to a specified number after a few seconds receiver is being lifted or hook off.

Night message

hank you for calling my company. Your call important to us. Our office timing is 9.30 am to 6.00 pm. please leave your message after beep, and we'll respond to you as soon as possible. Thank you and have a nice day

Day message

Thank you for calling my company. Your call important to us. Please hold while we connect your call. It will be recorded due to quality purpose.

Watch Video


Technical Specifications

  • Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
  • Frequency ranges:
  • GSM 850: Transmission: 869.2 ~ 893.8MHz, Reception: 824.2 ~ 848.2MHz
  • GSM 1900: Transmission: 1, 930 ~ 1, 990MHz, Reception: 1, 850 ~ 1, 910MHz
  • GSM 900: Transmission: 890 ~ 915MHz, Reception: 935 ~ 960MHz
  • GSM 1800: Transmission: 1, 710 ~ 1, 785MHz, Reception: 1, 805 ~ 1, 880MHz
  • Phone interface: supply RJ-11 Phone Interface
  • Desktop connectivity: USB Port
  • SD card: 16GB
  • Recording in 16GB: 35000 Minutes
  • Hanging voltage: 45V
  • Picking off voltage: 30mA / 41mA
  • Dialing tone Frequency: 450Hz
  • Antenna interface: Antenna amplifying>3db
  • Sensitivity:< - 104DBM
  • Transmitting power<3W
  • AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: 12DC 1A
  • Quantity warranty Price Action
    1 1 years 13999INR Buy
    3 1 years 38999INR Buy
    5 1 years 59999INR Buy
